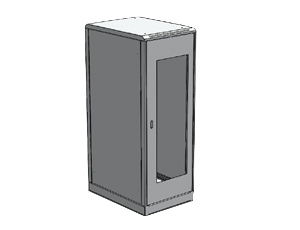

Floor Standing Rack

We are Manufacturer, Supplier, Exporter of Standard Heatsinks, Heatsinks, Aluminum Heatsinks, Heat Sinks Extrusion Profiles, Standard Heat Sinks. Our setup is situated in Pune, Maharashtra, India.







Open Frame 2 Post Rack

Heavy Duty Aluminum Racks for Networking Applications Rigid Extruded aluminum profiles makes it sturdy and light weight Confirms to DIN-41494 Manufactured Under ISO 9001-2008 Manufacturing & Quality Management System


Technical Specification


  • Frame Construction- Aluminum Extruded Profiles
  • Front & Rear Door Mild Steel 1.5 mm Thick
  • Side Panel Mild Steel 1.5 mm Thick
  • Top & Bottom Panel- Mild Steel 1.5 mm Thick



Finish


  • Profiles-RAL 7037 Gray Powder Coating
  • Doors- RAL 7035 Off White Powder Coating
  • Height Options- 24U , 33U , 36U , 42U
  • Width Options 600 mm & 800 mm
  • Depth Options 650 mm & 800 mm

Accessories(optional)


  • Cable Manager
  • Rack Mounting Hardware
  • Panel Mounting M6 Screws
  • Power Distribution Unit
  • Shelves

Standard Package


  • Vertical Profiles 2 nos
  • Base Angles 2 nos
  • Top Angles 2 nos
  • M 6 x 12 Screw 25 nos For Panel Mounting
  • M 12 X 25 Hex Bolt 12 nos - For Rack Assembly
